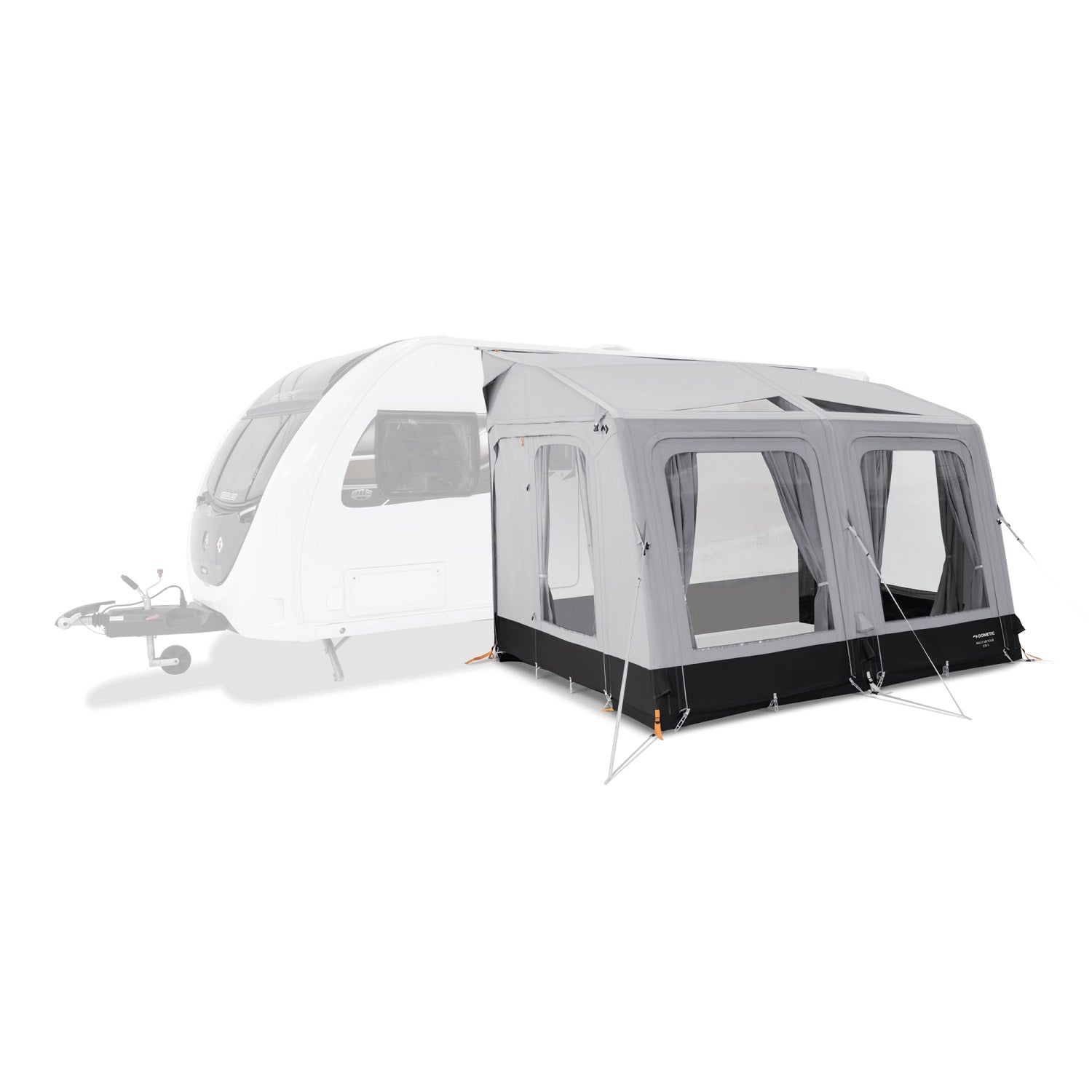

Dometic Rally AIR Tour 330 S

Features

Single-Point Inflation System: Eliminates the hassle of multi-pole setups. The entire AirFrame inflates rapidly from one single external valve point, structuralizing the awning in minutes.

Next-Gen Weathershield™ Tour Fabric: Crafted from a heavy-duty, 300-denier dope-dyed ripstop polyester. This premium fabric features a woven grid pattern to prevent tearing, resists color fading from harsh UV rays, and handles extreme downpours easily.

Smart Multi-Height System: Features an adjustable zipper track on the side gussets, allowing the connection height to vary smoothly between 235cm and 265cm. This guarantees a tight, windproof seal against uneven campsite ground.

Dual-Pitch™ Roof System: Engineered with a distinct apex angle on the roofline. This profile increases structural wind deflection, maximizes interior standing headroom at the front, and prevents rainwater from pooling on top.

Fully Removable Zip-Out Panels: Both front and side panels can be zipped completely out. This lightens the canvas weight significantly when pulling it through your caravan rail and transforms the awning into an open sun canopy on hot days.

Integrated Apex Ventilation: High-level weather-protected mesh vents sit at the upper corners of the awning. This continuously circulates fresh air, massively slashing morning humidity and interior condensation.

Specifications

Awning Width 330 cm (3.3 m)

Awning Depth 250 cm (2.5 m)

Connection Profile (Fitting Height) S Height: 235 cm to 265 cm

Connection Length 340 cm

Internal Front Height 185 cm

Flysheet Material Weathershield™ Tour Dope-Dyed Ripstop Polyester (300D)

Frame Type Inflatable Multi-Port AirFrame (Single-Point Inflation)

Total Product Weight 26 kg

Minimum Setup Weight 14.10 kg (With front/side panels removed for easier rail feeding)

Pack Size 93 cm x 54 cm x 29 cm (L x W x H)

Kador Beading Diameter Dual Bead Fitted: 5mm (Wind-out awning rails) & 7mm (Standard caravan rails)

Pitching Time ~9 Minutes
